McDonnell & Miller 135700 BEG135700
  1. pin-int

McDonnell & Miller 135700 BEG135700

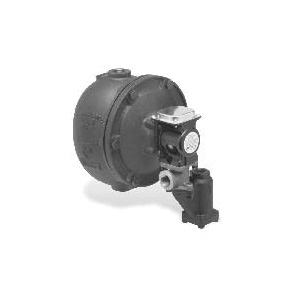

McDonnell & Miller 51-S/51-S-2 Series 51-SB 135700 Mechanical Water Feeder/Low Water Cut-Off With Float Block, NPT

  • Manufacturer: Xylem
  • Brand Name: McDonnell & Miller
  • Part#: BEG135700
  • MPN: 135700
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

McDonnell & Miller Mechanical Water Feeder/Low Water Cut-Off With Float Block, 51-S/51-S-2 Series, Model: 51-SB, 10.2 A at 120 VAC, 5.1 A at 240 VAC Full Load, 61.2 A at 120 VAC, 30.6 A at 240 VAC Locked Rotor, 120/240 VAC, 60 Hz, 100 psi Supply, 35 psi Vessel, NPT Connection, 1 x 3/4 in Connection, VA Rating: 125 VA, 120 deg F, 10-3/8 in H

Amperage Rating      :      10.2 A at 120 VAC, 5.1 A at 240 VAC Full Load, 61.2 A at 120 VAC, 30.6 A at 240 VAC Locked Rotor
Connection Size      :      in
Connection Type      :      NPT
Dimensions      :      10-3/8 in H
Frequency Rating      :      60 Hz
Model      :      51-SB
Pressure Rating      :      100 psi Supply, 35 psi Vessel
Series      :      51-S/51-S-2 Series
Temperature Rating      :      120 deg F
VA Rating      :      125 VA
Voltage Rating      :      120/240 VAC
    Proportional feed action
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McDonnell_Miller_114639_Catalog.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/McDonnell_Miller_134800_Instruction_Installation_Manual.pdf
