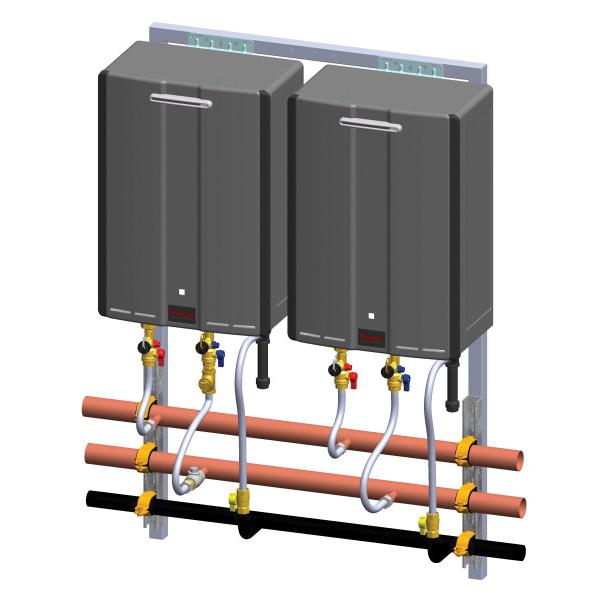

Rinnai® TRW02STeP RINTRW02STEP
2-Unit LP Wall Hanging Rack - Recirculation
- Manufacturer: Rinnai Corporation
- Brand Name: Rinnai®
- Part#: RINTRW02STEP
- MPN: TRW02STeP
- UPC: 766156010408
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
This two unit wall mounted design solution is a great replacement for standard and HE tanks and is ideal for food service and hospitality kitchen applications.Utilizing our most efficient SE+ model featuring ThermaCirc360, the internal pump provides easy recirculation capabilities.
| Product Depth | : | 13 in / (330 mm) |
| Product Height | : | 56.67 in / (1439 mm) |
| Product Sub Series | : | ThermaCirc360 Rack System |
| Product Weight | : | 177 lb / (80.3 kg) |
| Product Width | : | 47 in / (1194 mm) |
| Warranty - Standard for Commercial | : | 1 year on Rack Components/ Refer to tankless water heater model warranty details |
- Includes preassembled gas and water manifolds
- Provides redundancy by linking multiple units together
- Use Cascade Cables to electronically connect up to 24 water heaters so they comminicate and ensure uniform usage
- Saves space and can freestand or wall mount, indoors or outdoors
- Superior load tracking saves energy by supplying only the amount of hot water needed
- Comes standard with the condensing SE+ Tankless Water Heater
- Fits, fully assembled, through standard 32'' doorways and on elevators
- Has mutiple venting options including PVC and Polypropylene
- Common venting can accommodate up to 12 Tankless Water Heaters on 6'' PVC or Polypropylene using either Room Air or Direct Vent applications
- Uses Natural Gas or Propane
Instruction/Installation Manual
