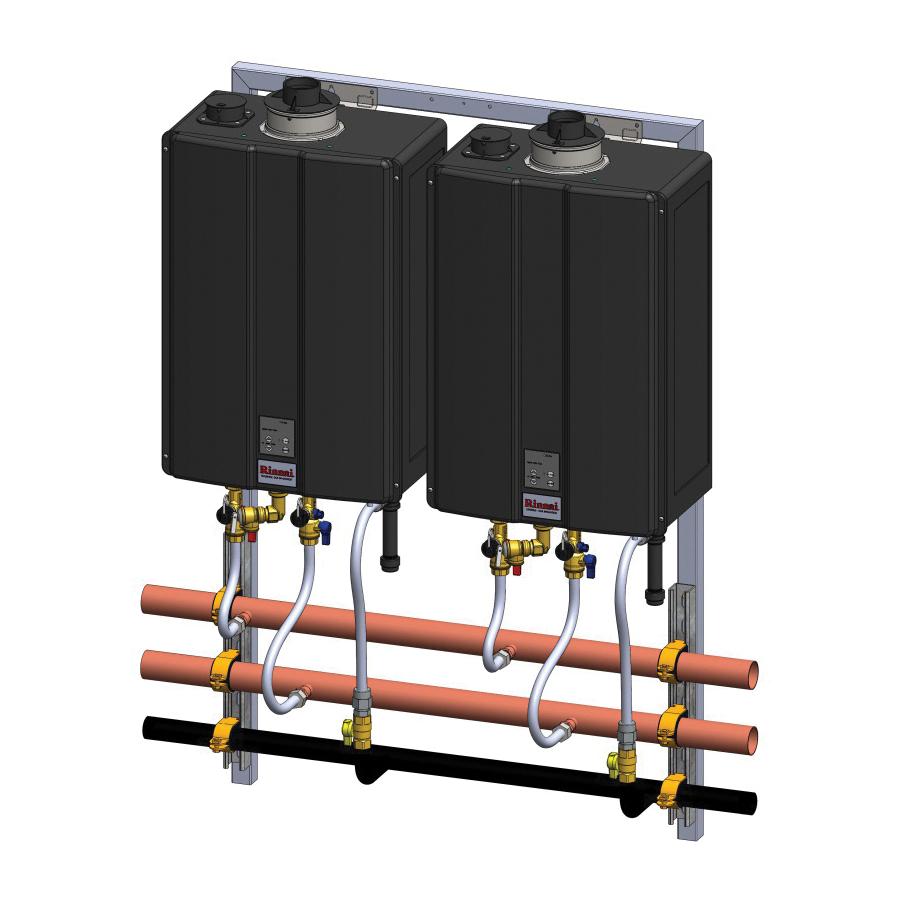

Rinnai® TRW02CUiP RINTRW02CUIP

This two unit wall mounted design solution is a great replacement for standard and HE tanks and is ideal for food service and hospitality kitchen applications.

Rinnai®, 47 in W, 56.67 in H, 13 in D, Charcoal, Gray, Wall-Mounting, 0.26 to 22 Flow Rate, 120 VAC Voltage, 60 Hz Frequency, 98 to 185 deg F Temperature Range, 97.0% Energy Efficiency, 98 to 185 deg F Temperature Range, 97% Energy Efficiency, 1-1/4 in MNPT Gas Connection, LP Gas Type, Direct Electronic Ignition Type, Indoor Only, 15,000 to 398,000 Btu Rating, 8 A Maximum Current Amps, 398,000 Btu Maximum Input Domestic Water, 50 to 150 psi Water Pressure, Ultra Low NOx Scaqmd, 2 in, 3 in, 2 x 4 in, 3 x 5 in Vent Sizes, Concentric, Twin Pipe, Room Air, Common Vent Styles, 2 in Copper Water Connection, Polypropylene, PVC, CPVC Vent Materials

• Provides redundancy by linking multiple units together
• Use cascade cables to electronically connect up to 24 water heaters so they communicate and ensure uniform usage
• Saves space and can free-stand or wall-mount, indoors or outdoors
• Superior load tracking saves energy by supplying only the amount of hot water needed
• Comes standard with the condensing CU199 tankless water heater that boasts 97% thermal efficiency
• Fits, fully assembled, through standard 32 in doorways and on elevators
• Has multiple venting options including PVC and polypropylene
• Common venting can accommodate up to 12 tankless water heaters on 6 in PVC or polypropylene using either room air or direct vent applications
• Uses natural gas or propane

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RNN-11565271_InstallSheet.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/RNN-11565271_InstallSheet.pdf
