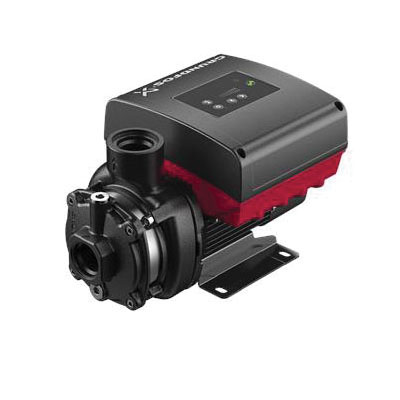

Grundfos 99381512 GRU99381512

Grundfos CME Series CME 15-1 99381512 Multi-Stage End Suction Centrifugal Pump With Integrated Frequency Converter

  • Manufacturer: Grundfos
  • Brand Name: Grundfos
  • Part#: GRU99381512
  • MPN: 99381512
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Compact, reliable, horizontal, multi-stage, end suction centrifugal pump with axial suction port and radial discharge port. The shaft, impellers and chambers are made of stainless steel. The inlet and discharge parts are made of cast iron. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal NPT pipe threads. The pump is fitted with a 3 ph, fan cooled, permanent magnet, synchronous motor. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.

Grundfos Multi-Stage End Suction Centrifugal Pump, Series: CME, Model: CME 15-1, 200 to 240 V, Amperage Rating: 7.9 to 6.6 A, 50/60 Hz Frequency, HP Rating: 2.95 hp, Phase: 3 ph, 2 in Inlet Connection, Outlet Connection Size: 2 in, 89.8 gpm Flow Rate, Maximum Pressure: 145.04 psi, 3480 rpm Speed, Motor Speed Rating: 360 to 4000 rpm, Service Factor: 1.15, -4 to 194 deg F, Ball Bearing, Frame: 100A, Cast Iron/EPDM/Silicon Carbide/Stainless Steel Housing, 18.3 in Overall Length, 7.87 in Overall Width, 11.8 in Overall Height

Amperage Rating      :      7.9 to 6.6 A
Bearing Type      :      Ball
Flow Rate      :      89.8 gpm
Frame      :      100A
Frequency Rating      :      50/60 Hz
HP Rating      :      2.95 hp
Housing Material      :      Cast Iron/EPDM/Silicon Carbide/Stainless Steel
Inlet Connection Size      :      2 in
Maximum Pressure      :      145.04 psi
Model      :      CME 15-1
Motor Speed Rating      :      360 to 4000 rpm
Outlet Connection Size      :      2 in
Overall Height      :      11.8 in
Overall Length      :      7.87 in
Phase      :      3 ph
Series      :      CME
Service Factor      :      1.15
Speed Rating      :      rpm
Temperature Rating      :      -4 to 194 deg F
Voltage Rating      :      200 to 240 V
    Rotation indicator allows you to quickly check if 3 ph electrical connection is correct; indicator shows black if correct, white if incorrect
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Grundfos_14637733_Instruction_Installation_Manual.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Grundfos_14642491_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Grundfos_14642491_Specification_Sheet.pdf
