Grundfos 95906636 gru95906636
  1. pin-int

Grundfos 95906636 gru95906636

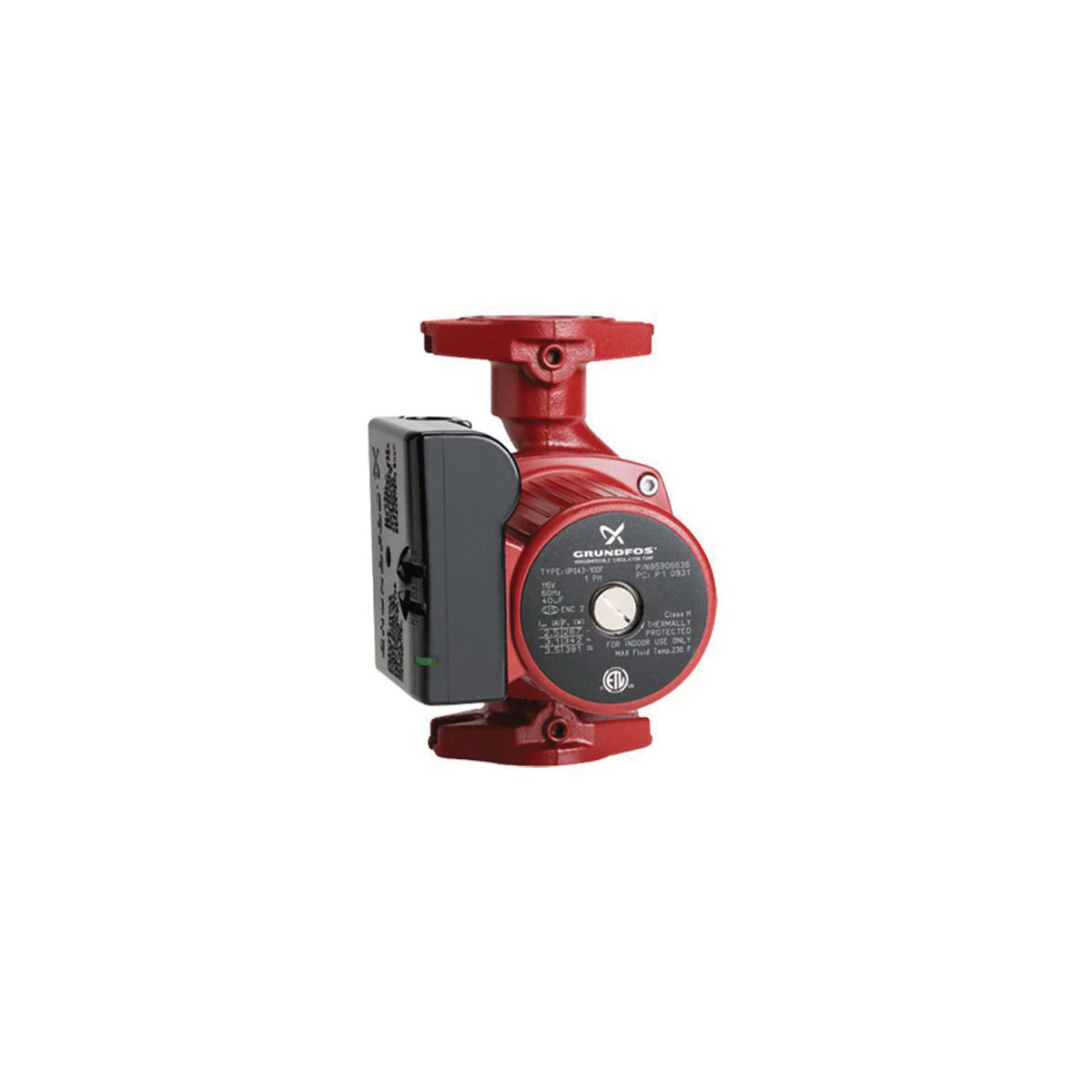

Grundfos Large Stator UP Series UPS 43-100 F 95906636 Circulator Pump, 65 gpm, 370 W, 115 V, 3.5 A, 60 Hz, Iron

  • Manufacturer: Grundfos
  • Brand Name: Grundfos
  • Part#: gru95906636
  • MPN: 95906636
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Grundfos Circulator Pump, Large Stator UP Series, Model: UPS 43-100 F, 65 gpm Flow Rate, 31 ft Maximum Head, 370 W, 115 V, 3.5 A, 60 Hz, 145 psi Maximum Pressure, 1/3 hp, 2-Bolt Flanged Connection, 1 ph Phase, 2 Poles, 104 deg F Ambient, 176 deg F Liquid, Iron, 8.5 in H x 6.69 in W

Amperage Rating      :      3.5 A
Connection Type      :      2-Bolt Flanged
Dimensions      :      8.5 in H x 6.69 in W
Flow Rate      :      65 gpm
Frequency Rating      :      60 Hz
HP Rating      :      1/3 hp
Material      :      Iron
Maximum Head      :      31 ft
Maximum Pressure      :      145 psi
Model      :      UPS 43-100 F
Number of Poles      :      2
Phase      :      1 ph
Power Rating      :      370 W
Series      :      Large Stator UP Series
Temperature Rating      :      104 deg F Ambient, 176 deg F Liquid Enclosure Type
Voltage Rating      :      115 V
    Removable check valve
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Grundfos_95906636_Catalog.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Grundfos_95906636_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Grundfos_95906636_Specification_Sheet.pdf
