Grundfos 95906637 GRU95906637

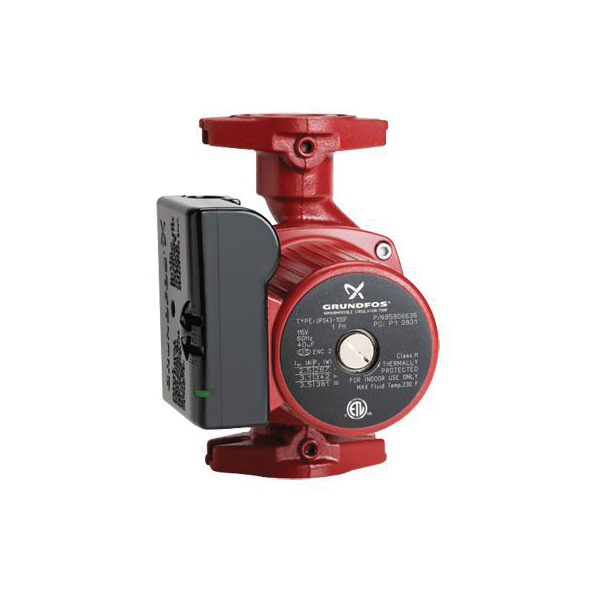

Grundfos UPS Series UPS 43-100 F 95906637 Circulator Pump, 65 gpm, 370 W, 230 V, 1.2/1.5/1.7 A, 60 Hz
- Manufacturer: Grundfos
- Brand Name: Grundfos
- Part#: GRU95906637
- MPN: 95906637
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. The motor is a 1 ph motor. No additional motor protection is required.
Grundfos Circulator Pump, Series: UPS, Model: UPS 43-100 F, 65 gpm Flow Rate, 30.84 ft Maximum Head, 370 W Power, 230 V, 1.2/1.5/1.7 A, 60 Hz Frequency, 145.04 psi Maximum, HP Rating: 0.3554 hp, 2 in Connection, Flange Connection, 1 ph Phase, 2 Pole, 32 to 230 deg F, Axial, Radial Bearing, Cast Iron/Composite/PES, Dimensions: 8-1/2 in H, Additional Information: 8-1/2 in L Port-to-Port
| Additional Information | : | 8-1/2 in L Port-to-Port |
| Amperage Rating | : | 1.2/1.5/1.7 A |
| Bearing Type | : | Axial, Radial |
| Connection Size | : | 2 in |
| Connection Type | : | Flange |
| Dimensions | : | 8-1/2 in H |
| Flow Rate | : | 65 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 0.3554 hp |
| Material | : | Cast Iron/Composite/PES |
| Maximum Head | : | 30.84 ft |
| Maximum Pressure | : | 145.04 psi |
| Model | : | UPS 43-100 F |
| Number of Poles | : | 2 |
| Phase | : | 1 ph |
| Power Rating | : | 370 W |
| Series | : | UPS |
| Temperature Rating | : | 32 to 230 Enclosure Type |
| Voltage Rating | : | 230 V |
- Corrosion-resistant impeller, composite, PES
