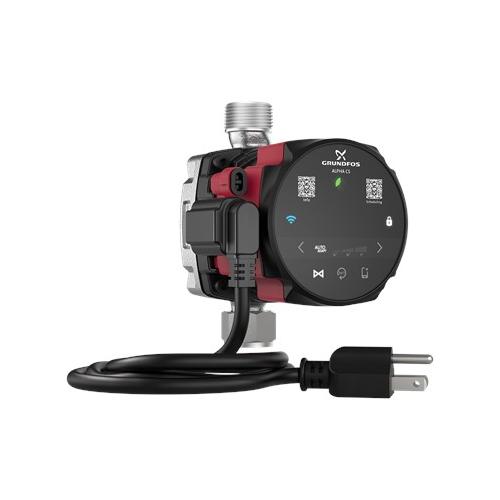

Grundfos 92603114 GRU92603114
Grundfos B 92603114 Circulating Pump, 8.37 gpm, 38 W, 115 V, 0.06 to 0.71 A, 60 Hz, 174.92 psi Max Pressure
- Manufacturer: Grundfos
- Brand Name: Grundfos
- Part#: GRU92603114
- MPN: 92603114
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
ALPHA CS is designed for domestic hot-water recirculation systems without a dedicated return line. It comes with a bypass valve with a thermal actuator and offers scheduling via the built-in digital timer.
Grundfos Circulating Pump, Series: ALPHA CS Series, Model: B, 8.37 gpm, 3/4 in Outlet, 11.16 ft Maximum Head, 3/4 in Maximum Suction Lift, 38 W, 115 V, 0.06 to 0.71 A, 60 Hz, 174.92 psi Maximum, 3/4 x 3/4 in Connection, MNPT x FNPT Connection Type, CCW, 35.6 to 203 deg F, NEMA 2, Stainless Steel, 5.59 in H x 5.16 in W, Additional Information: 5.59 in L Port-to-Port, 13.6 gpm Maximum Flow, 9H Pump Head Orientation, 32 to 131 deg F Ambient Temperature, Electronic Thermal Protection
| Additional Information | : | 5.59 in L Port-to-Port, 13.6 gpm Maximum Flow, 9H Pump Head Orientation, 32 to 131 deg F Ambient Temperature, Electronic Thermal Protection |
| Amperage Rating | : | 0.06 to 0.71 A |
| Connection Size | : | 3/4 x 3/4 in |
| Connection Type | : | MNPT x FNPT |
| Dimensions | : | 5.59 in H x 5.16 in W |
| Flow Rate | : | 8.37 gpm |
| Frequency Rating | : | 60 Hz |
| Material | : | Stainless Steel |
| Maximum Head | : | 11.16 ft |
| Maximum Pressure | : | 174.92 psi |
| Maximum Suction Lift | : | 3/4 in |
| Model | : | B |
| Outlet Size | : | 3/4 in |
| Power Rating | : | 38 W |
| Rotation Type | : | CCW |
| Series | : | ALPHA CS Series |
| Temperature Rating | : | NEMA 2 Enclosure Type |
| Voltage Rating | : | 115 V |
